Q.ik Genava
MID MOTOR CARBON FIBER FOLDING ELECTRIC BIKE
SPECIFICATIONS
The Genava is Q.ik's brand highest-end model. An innovative and top-level brand in the application of carbon fibres in bicycle structures. Genava frame, front and rear forks are carbon fibre made. Other outstanding elements of this model are the central motor installed on the bottom bracket axis, and the suspension device of the rear fork. A sophisticated patent from the manufacturer, consisting of a bi-articulated arm and a hydraulic shock absorber that react very effectively to vibrations caused by surface irregularities. This makes it also suitable for use off-road.
It is one of the lightest electric folding bicycles in its category. A compact 20” wheel model, that can be quick and easily folded down in two movements thanks to two pivot points.
The 5-level motor assistance is managed by a pedalling pressure Torque type sensor.
The carbon belt drive is also available as an optional equipment.
Wheel size
20'x1.75'
Unfolded bike size
165x58x110 cms
Folded bike size
83x52x68 cms
Weight
15.5 Kg
Max. admissible load
100 Kg
Max Speed (motor assisted)
25Km
Motor placement
Mid engine
Sensor
Torque. Pedal pressure
Brakes
Front and rear hydraulic 160mm disk
Rear suspension
Patented hydraulic shock absorber
Battery
Seat post removable
Battery charging time
3.5h
Display
Multifunction digital display. USB port
Assistance levels
5
Lighting
Front and rear lights from display
Battery options
LG 36V 10,5Ah (optionally 14Ah)
Range
65 km (90 km if 14Ah upgrade)
Fenders
Front and rear wheel plastic fenders
Rear carrier admissible load
25Kg
Stem
Telescopic adjustable high stem
Suspension
Double arm air adjustable rear suspension
Color
Matt black / Matt white / Matt dark purple
Throttle lever
Optional
Anti-theft battery key locker
Motor
Dapu. 36V 250W mid motor
Frame and forks
Carbon fiber
Rims
Double wall aluminum alloy
Tire
Schwalbe 20" x 1.75 / 40 to 65 PSI
Battery
LG 36V 10,5Ah (optionally 14Ah)
Chain wheel
Prowheel 48T
Gear
SHIMANO Nexus 3 speed internal gear
Shifter
Grip - handlebar
Display
Naici KT-5 color LCD
Belt
Michelin - carbon
Brakes
Shimano hydraulic 16mm disk brakes
Controller
Naici sine wave Torque sensor

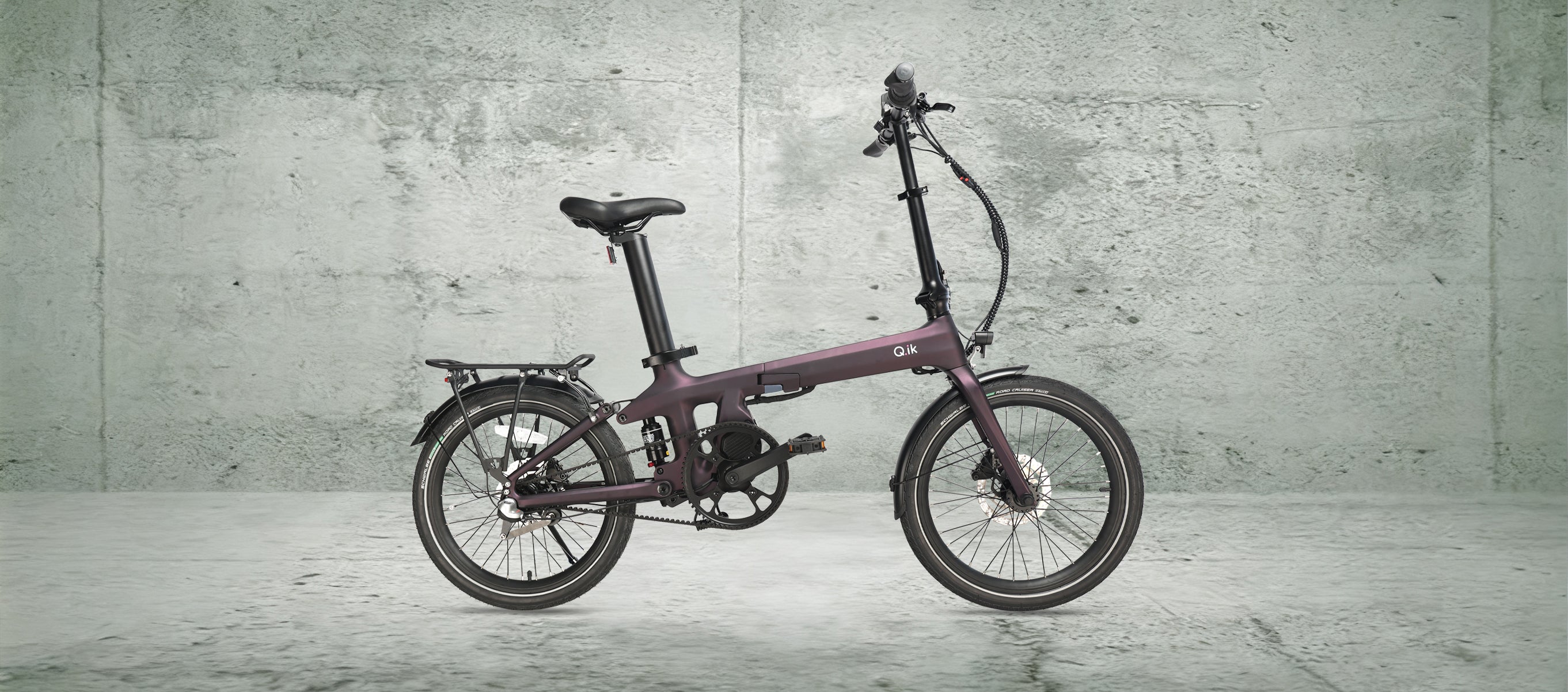

FOLDED / UNFOLDED Q.ik GENAVA

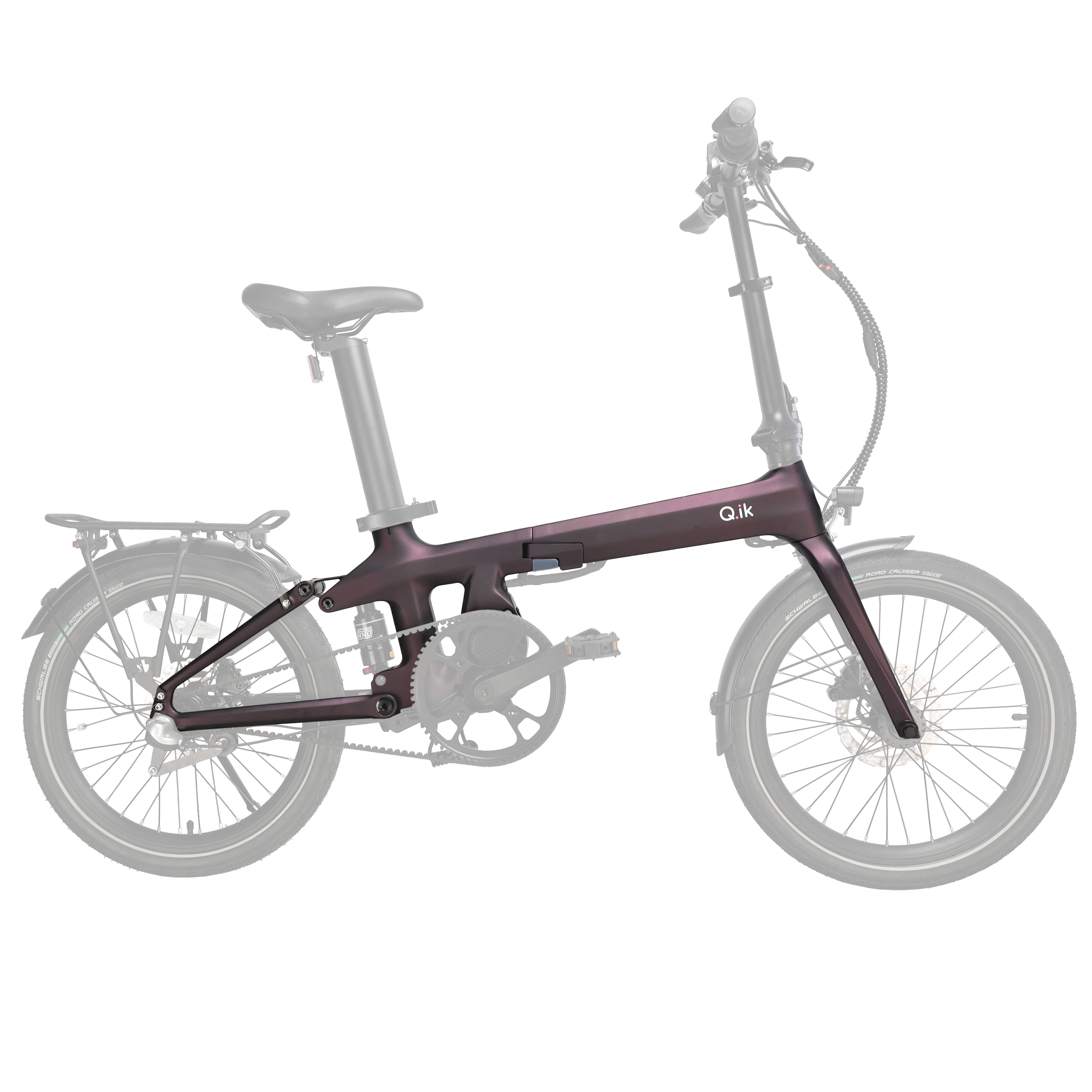

CARBON FRAME
The structural parts of the Genava model, main frame, rear frame and front fork are made of carbon fiber, which offers a very good mechanic resistance and much higher lightness than aluminium bike structures.
The rear fork joins to the main frame by means of an innovative system patented by the brand. A double suspension mechanism formed by an articulated arm and a highly effective hydraulic suspension to absorb the irregularities of the road.
CARBON BELT DRIVE
The Q.ik Genava features a carbon belt drive system and a combined with a Shimano Nexus 3 internal gear. This makes it an even lighter electric bike and eliminates maintenance tasks. It also prevents the mess of oils and lubricants that are necessary by traditional metal chain drive systems.

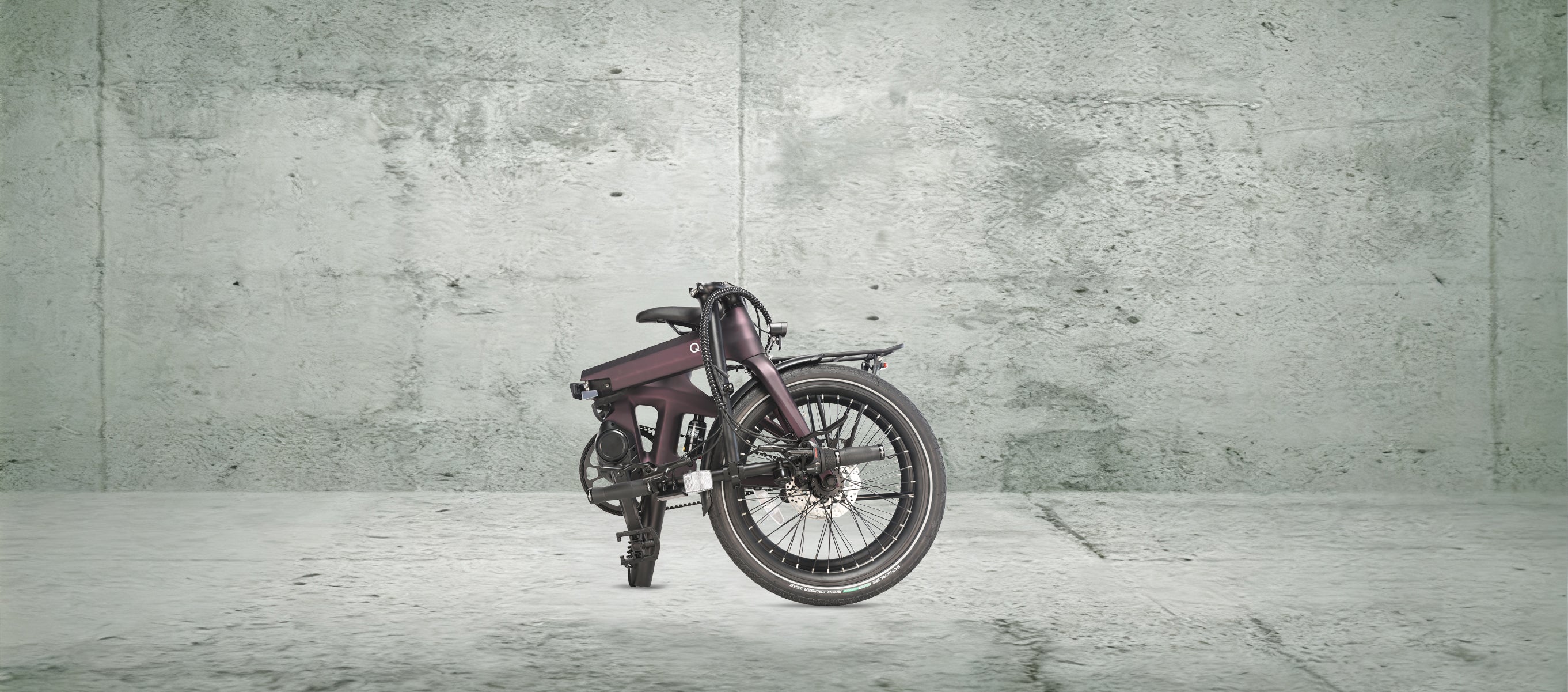

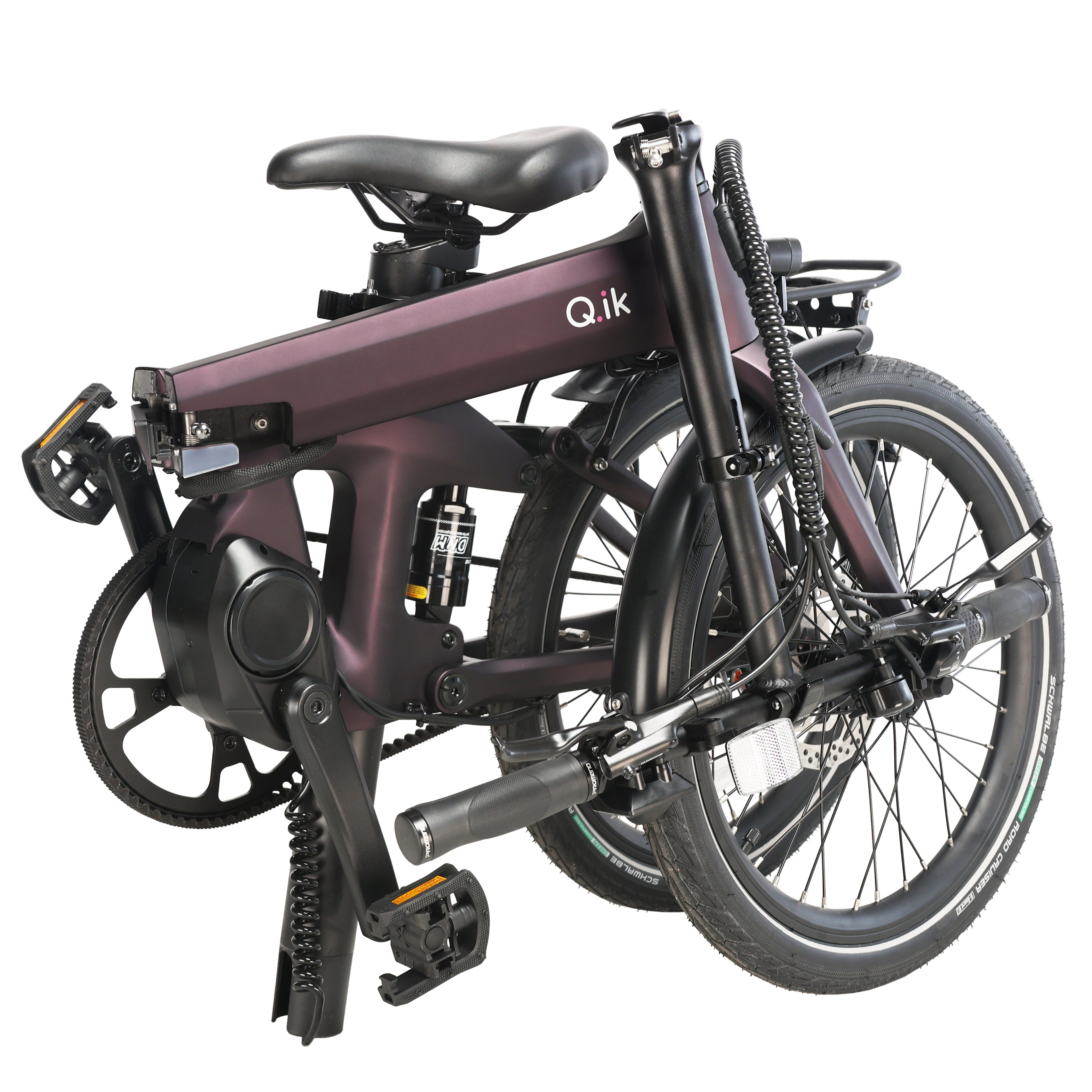

FOLDING SYSTEM
The Genava model's folding system is intuitive, easy and fast.
The folding system involves two steps. The first step involves rotating the front part of the frame 180° to position the front wheel parallel to the rear wheel. The second step involves folding the handlebar post and handlebars to sit alongside the wheels. To stabilise the bike when it's folded, it is necessary to lower the seat post until it touches the ground and becomes the third point of support.
A two-piece magnets device located on the axles of the front and rear wheels fix the folded position of the bike. It prevents the parts from moving while being manipulated or rolling on the pavements.

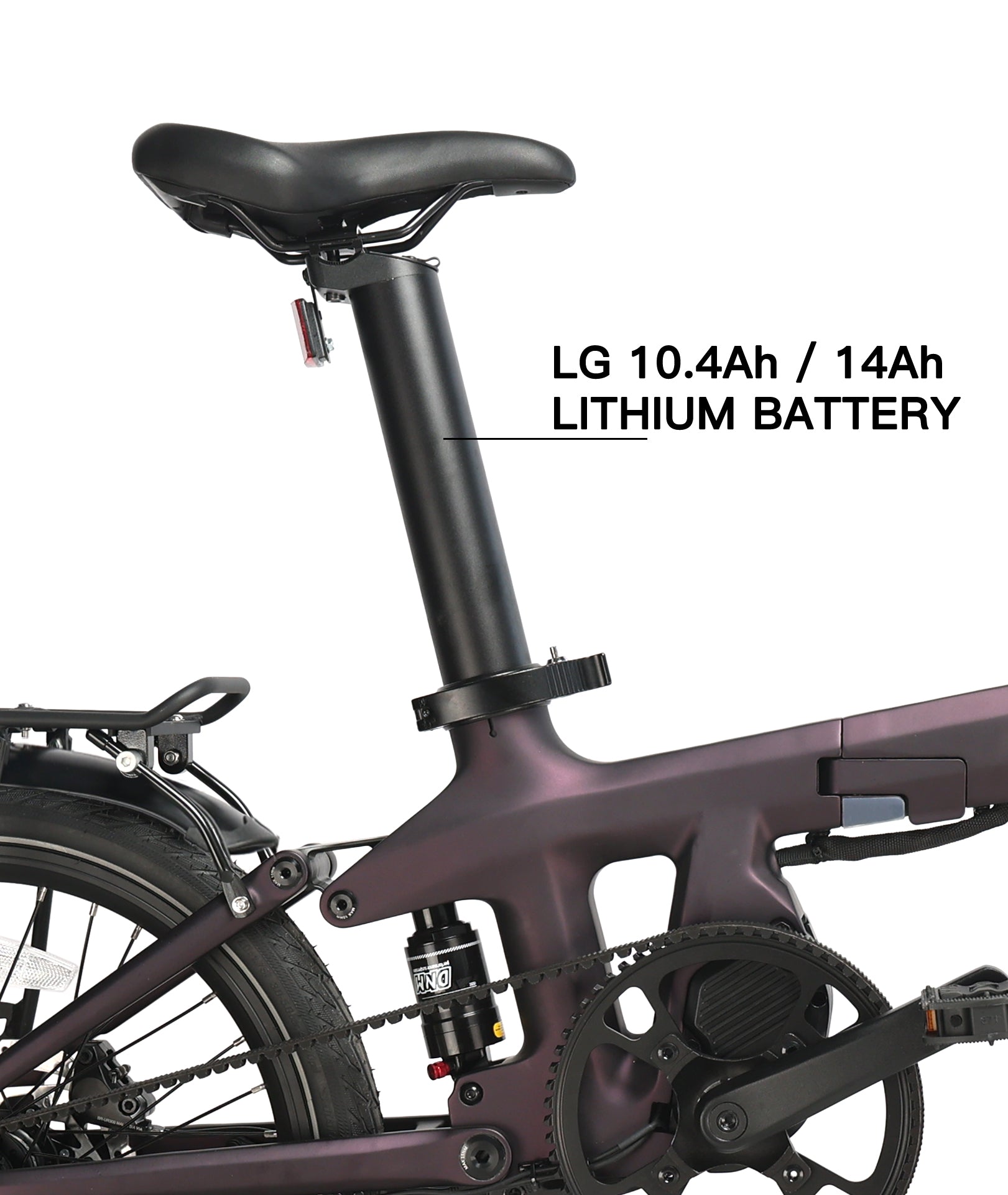

LG BATTERY
The Genava model is equipped with a 36V LG lithium battery with a 10,4Ah, optionally 14Ah charge capacity, giving it a riding range of up to 60/75 km. The battery fits neatly into the seat post, where the charging port and main power switch are also located. It can be easily removed, transported and charged anywhere without needing bike to be nearby.
The charging system features an innovative BMS, which prevents the battery from overcharging and overheating and regulates the release of energy for greater efficiency and longer use.
36V 250W MOTOR
The Genava features a 36V, 250W mid motor located in the pedalier axis, which has a factory-set power limitation to stop the bike from exceeding 25 km/h when assisted. By law, when the bike reaches this speed, the motor must stop providing assistance. The motor is powerful enough to meet the demands of overcoming steep slopes.
A pedalling pressure Torque type sensor controls the motor assistance depending on which of the five levels has been chosen.
It has a clutch system that allows the bike to roll without any resistance should the rider want to cycle without any help from the motor.

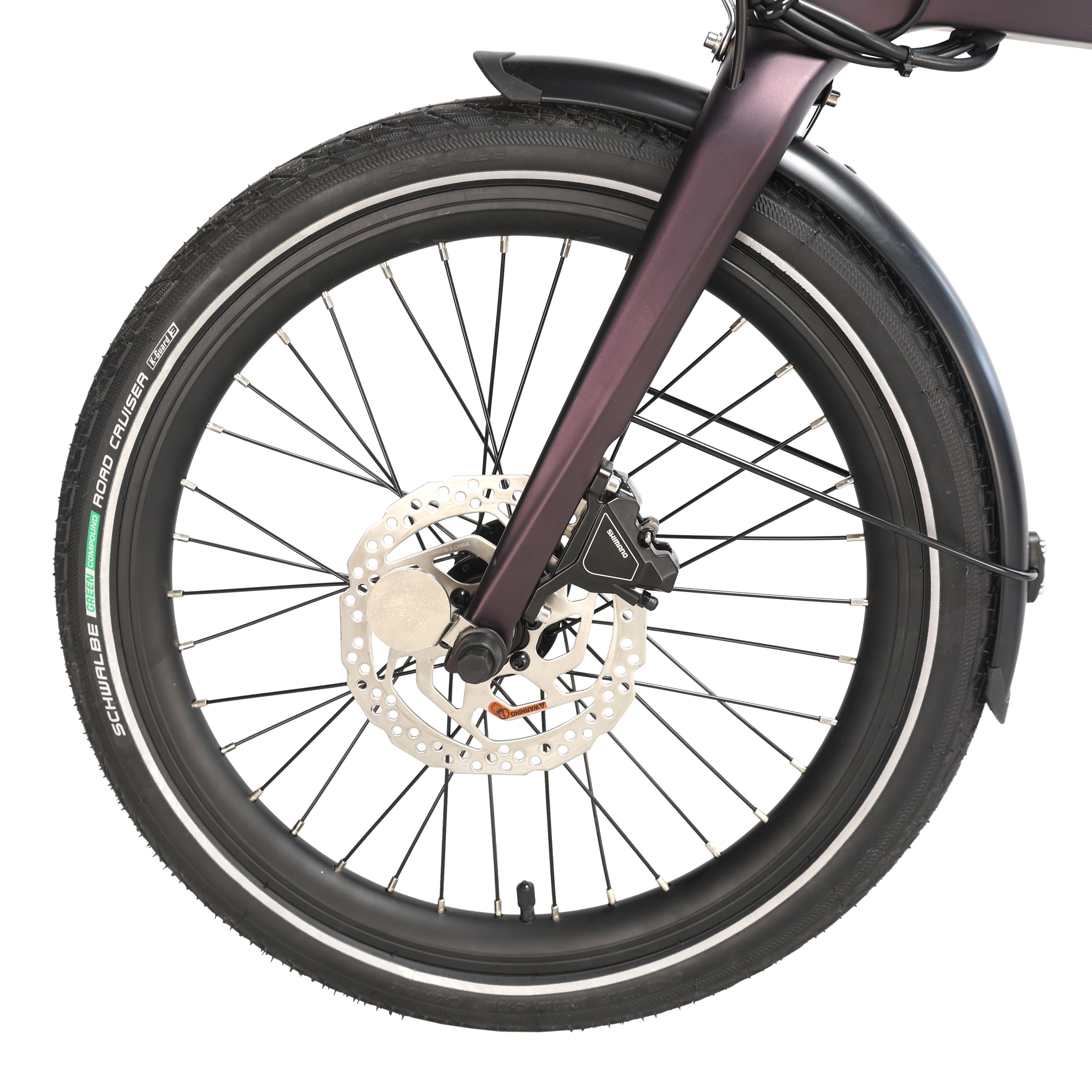

SHIMANO HYDRAULIC 16mm DISK BRAKES
The Genava is equipped with Shimano 160 mm hydraulic disc brakes on both the front and rear wheels. They offer great braking power and guarantee to stop the bike within a few metres in case of emergency in all riding conditions. In addition, squeezing the brakes automatically disables the motor, facilitating a more immediate brake response.

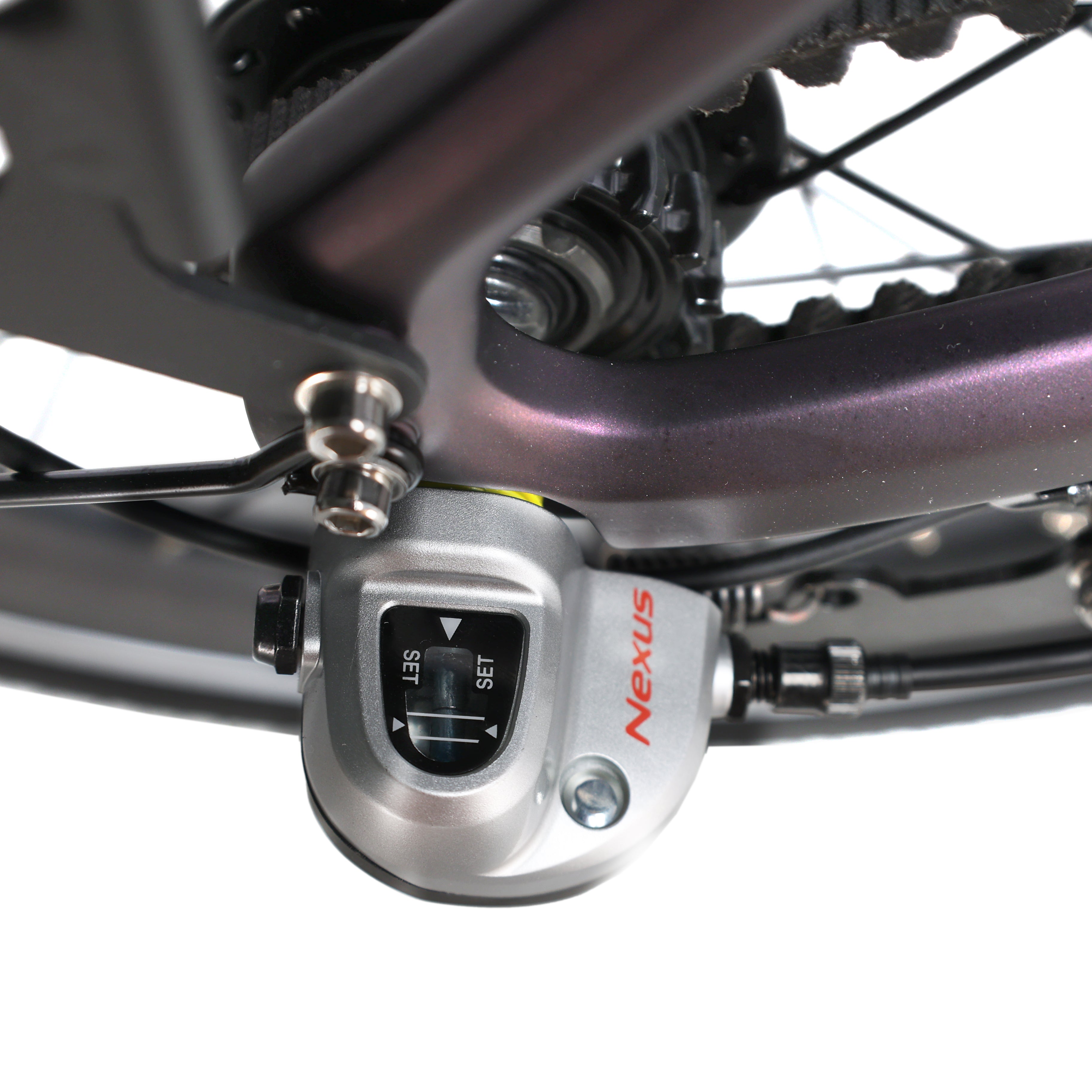

3-SPEED INTERNAL GEAR TRANSMISSION
The Genava's sets the Shimano Nexus 3 speed internal gear which adjusts the pedalling effort without forcing the motor. The grip-shift system on the handlebar delivers accurate gear selection according to the gradient of the road.

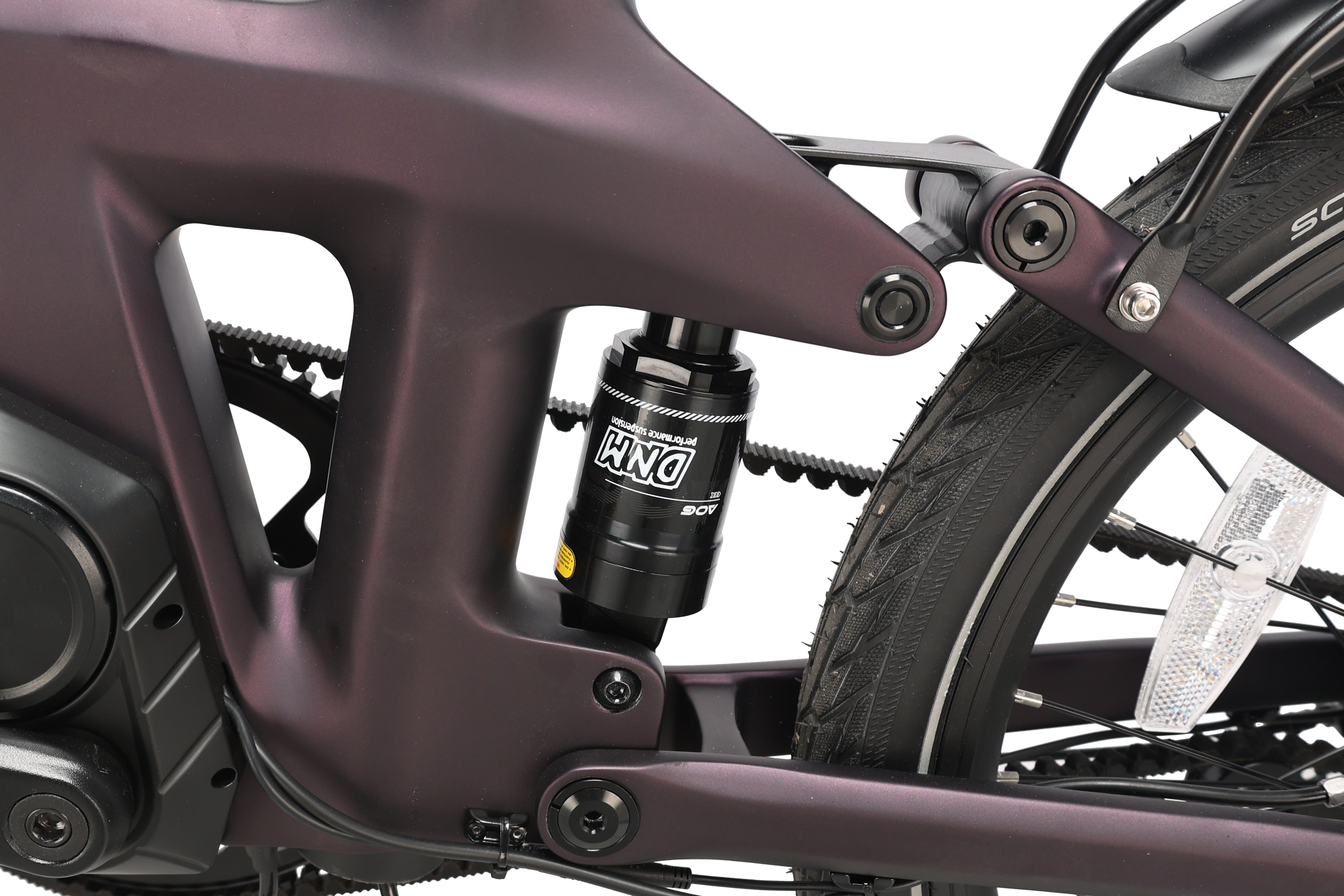

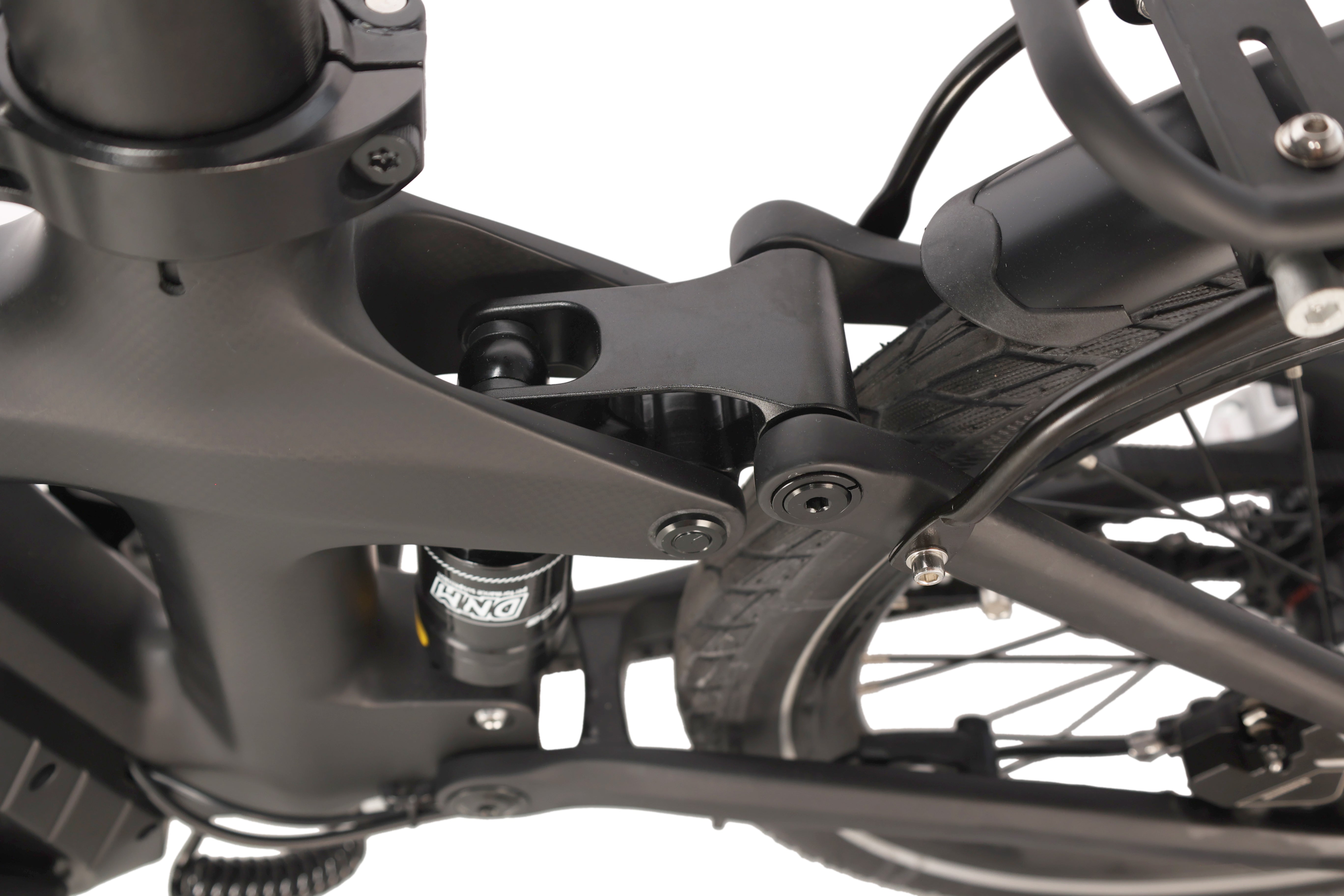

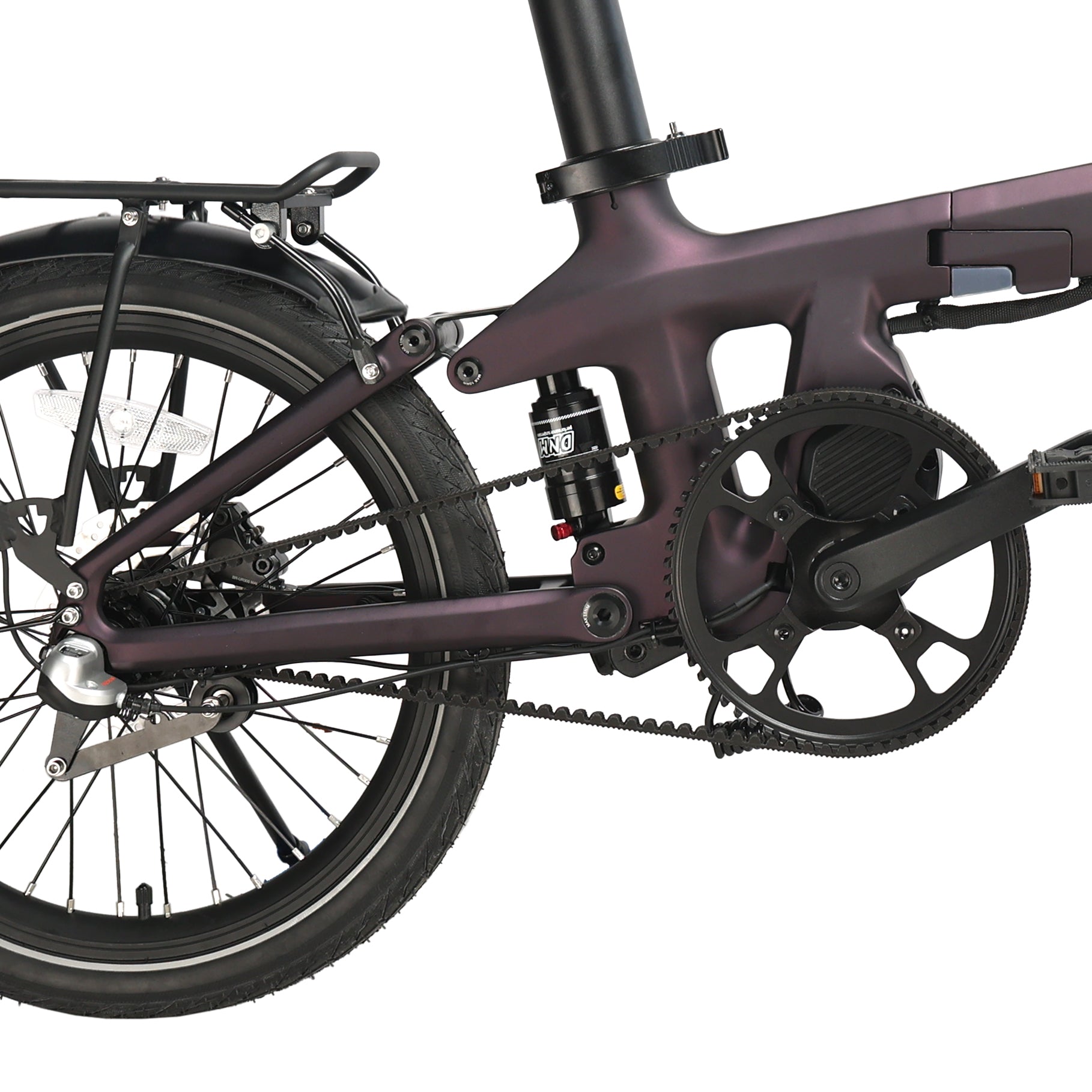

REAR FORK SUSPENSION
The connection between the rear frame and the main frame consists of a double lower and upper articulated fastening, and a hydraulic shock absorber. It is a highly effective mechanism that helps to absorb the movements and vibrations that the irregularities of the ground cause on the rear wheel, and that allows comfortly riding offroad.
FULLY EQUIPPED
Q.ik Genava standard version is a completely equipped ebike. Front and rear fenders, rear rack, seat post battery key lock system, front and rear lights managed from display, adjustable rear suspension shock absorver, torque sensor, LG 10Ah battery, Michelin carbon belt drive system, Shimano hydraulic disk brakes...
Q.ik GENAVA. CHOOSE THE HIGHEST
No electric foldable bike gathers more virtues than Q.ik Genava. Riding confort, lightness, elegance, pleasant and sportive performance..., all in one bike.
Mid motor, carbon fiber frame, double rear suspension, exquisite design... What more could you ask for?
