Q.ik Venetus
CARBON FIBER REAR SUSPENSION FOLDING ELECTRIC BIKE
SPECIFICATIONS
The Venetus is a low step frame high-end ebike model. All the ebike structural parts, frame, forks stem and handlebar are made of carbon fiber. This makes Venetus being an ultra light 20' wheel foldable ebike. It gets folded by two points of articulation and with only two movements. Beyond being a highly light model, the Venetus performs a super comborable riding experience supported by a complete equipment and hig end components: fornt and rear light, fenders, rear rack, in-built color display, 36V 10Ah LG battery, Schwalbe tires, Shimano hydrulic brakes and 8 speed Shimano Altus gear.
A Torque-type pedal pressure sensor manages the engine's demand for assistance, depending on which of the five assistance levels has been selected.
Wheel size
20'x1.75'
Unfolded bike size
152x65x110 cms
Folded bike size
78x45x75 cms
Weight
15.5 Kg
Max. admissible load
100 Kg
Max Speed (motor assisted)
25Km
Motor placement
Rear engine
Sensor
Torque
Drive
Michelin carbon belt
Gear
8 speed
Brakes
Front and rear hydraulic 160mm disk
Battery
Seat post removable
Battery charging time
3.5h
Display
In-built multifunction color display.
Assistance levels
5
Lighting
Front and rear lights from display
Battery options
LG 36V 10 Ah
Range
60 km
Fenders
Front and rear wheel plastic fenders
Rear carrier admissible load
25Kg
Color
Matt black / Matt purple / Matt light brown
Anti-theft battery key locker
Seat post clamp
Motor
Mivice. 36V 250W rear motor
Frame, fork, handlebar, stem
Carbon fiber
Rims
Double wall aluminum alloy
Tire
Schwalbe 20" x 1.75 / 40 to 65 PSI
Battery
LG 36V 10Ah
Chain wheel
Prowheel 52T
Rear derailleur
Shimano Altus 8 speed
Display
Handlebar in-built color display
Brakes
Shimano hydraulic 16mm disk brakes
Controller
Mivice (Torque sensor)

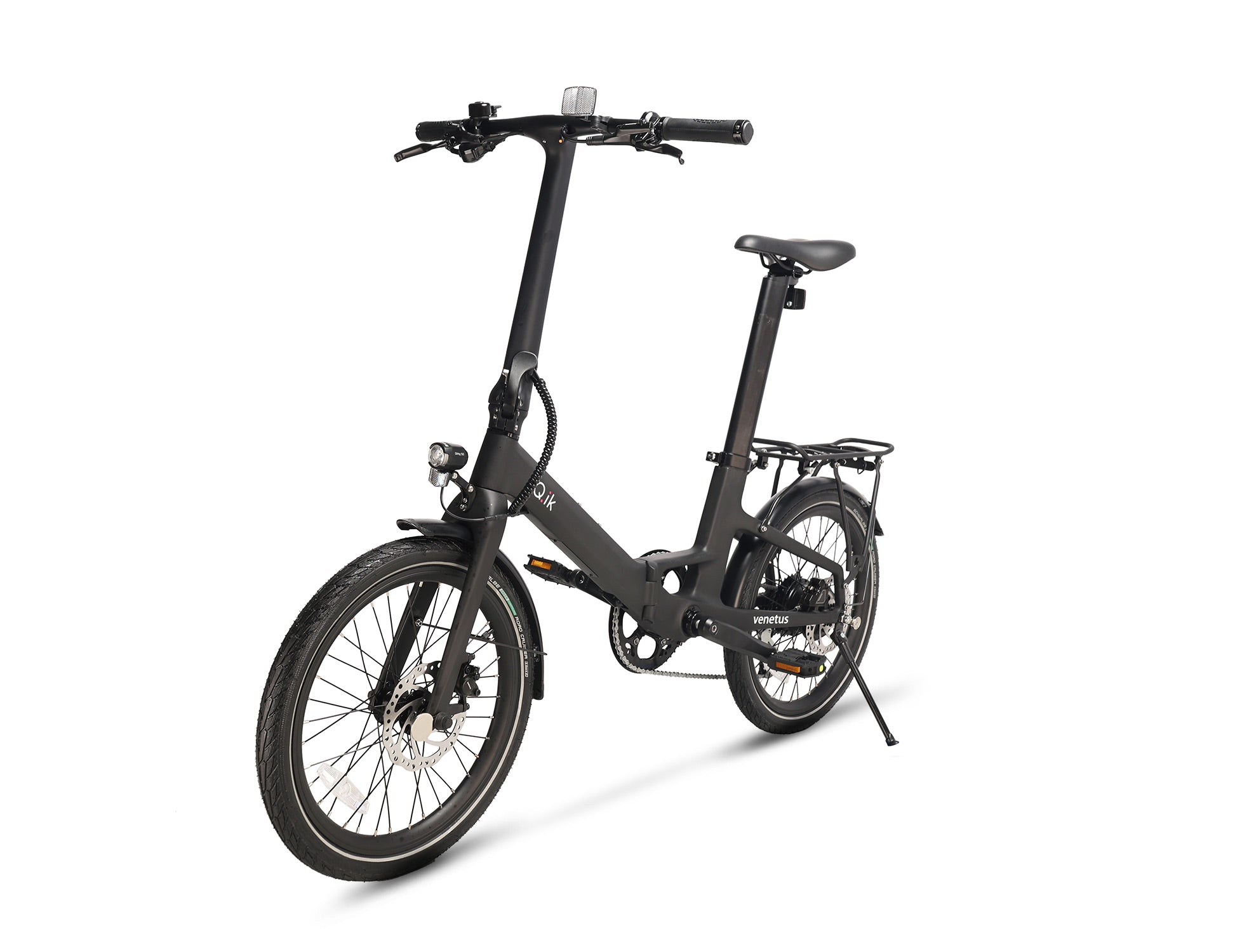

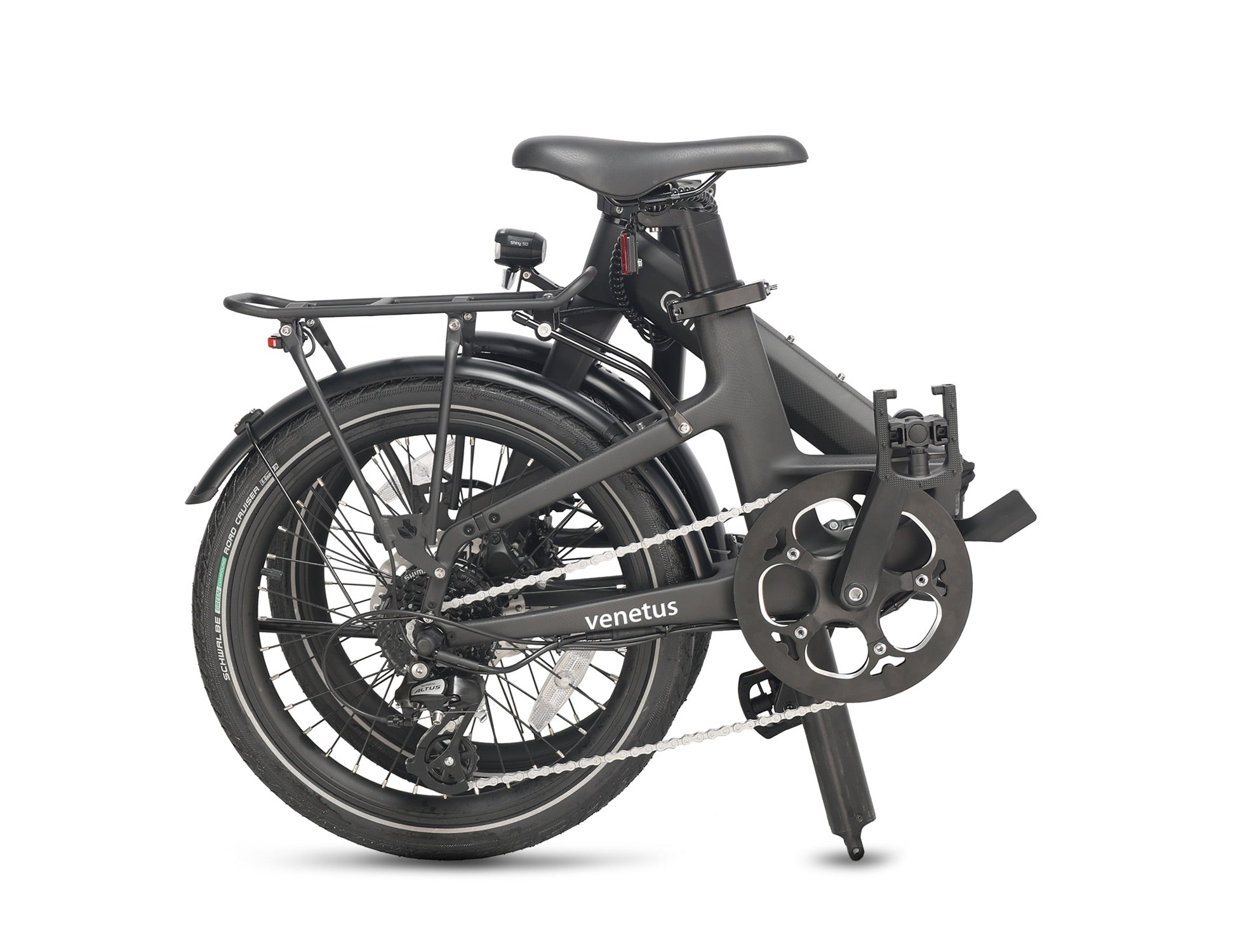

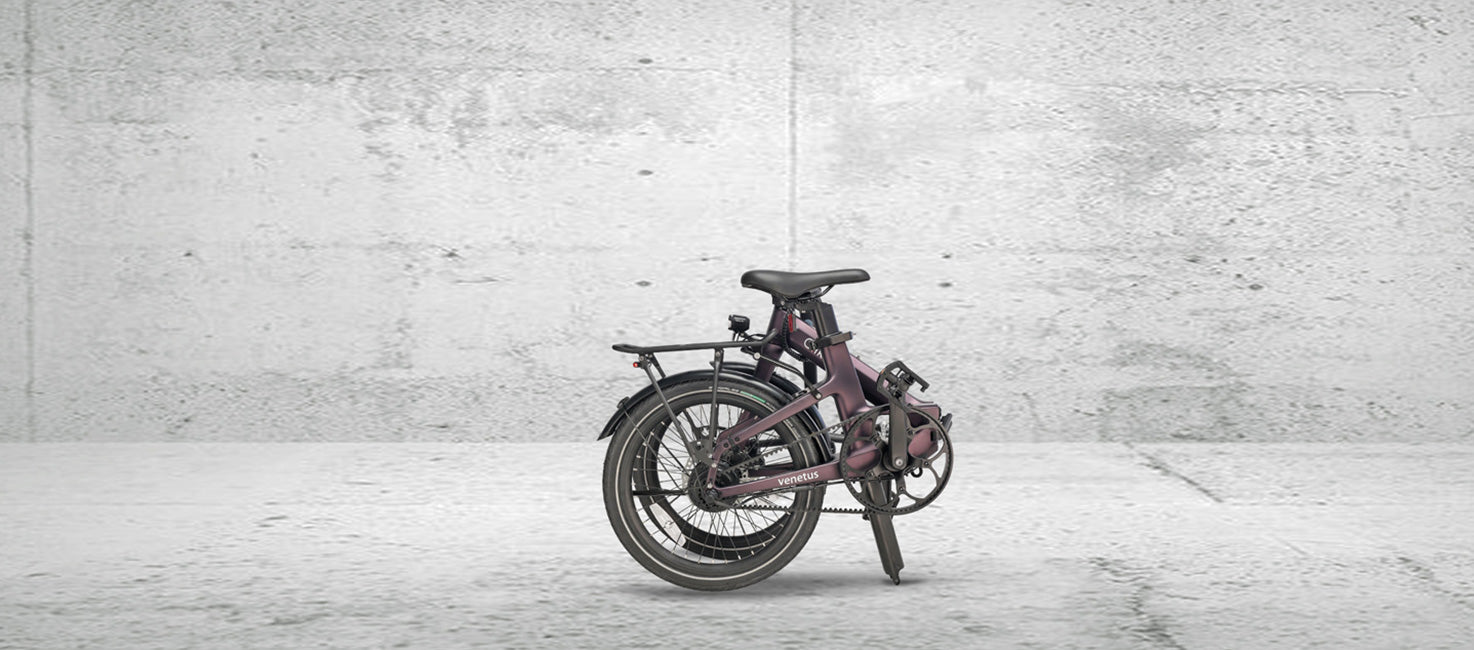

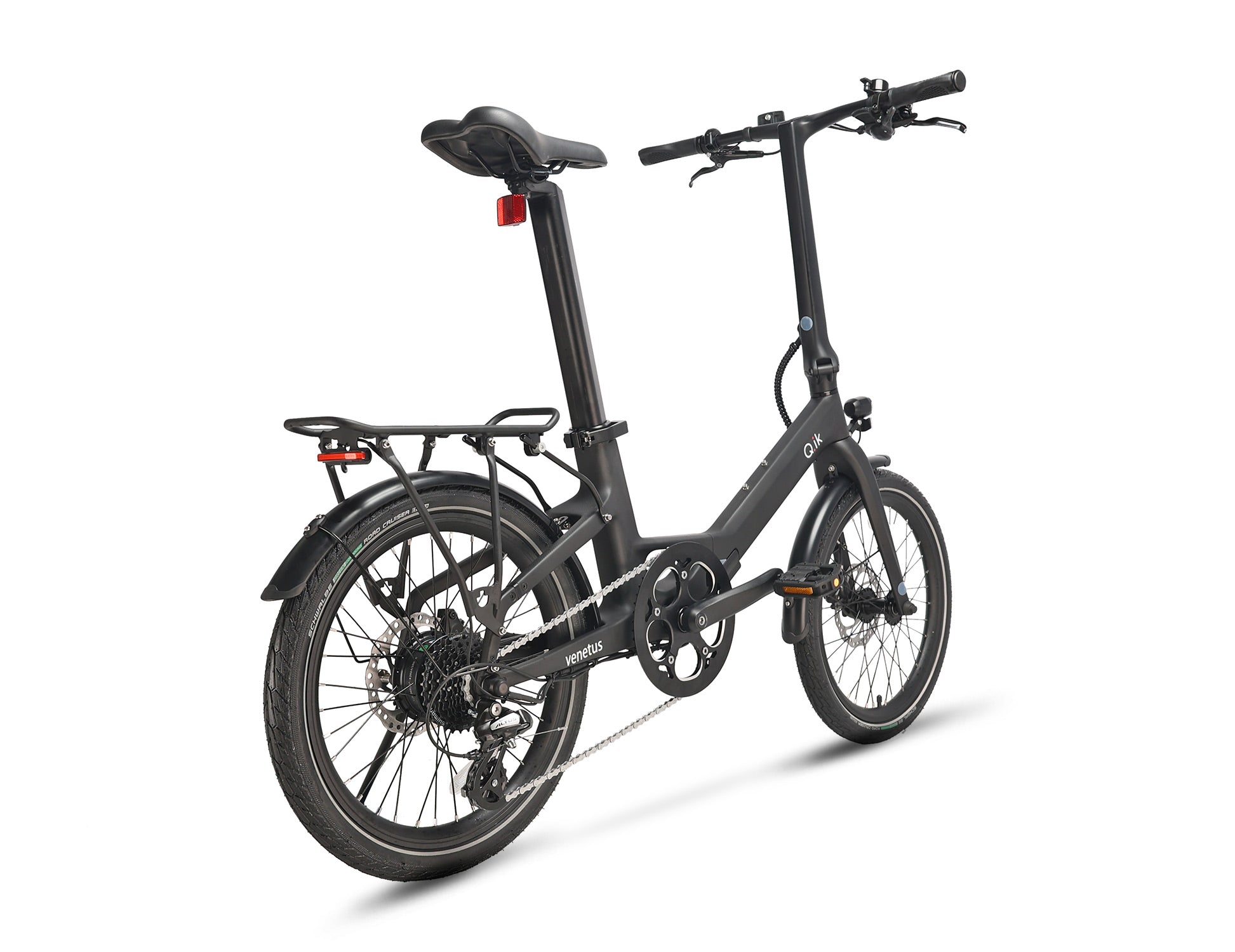

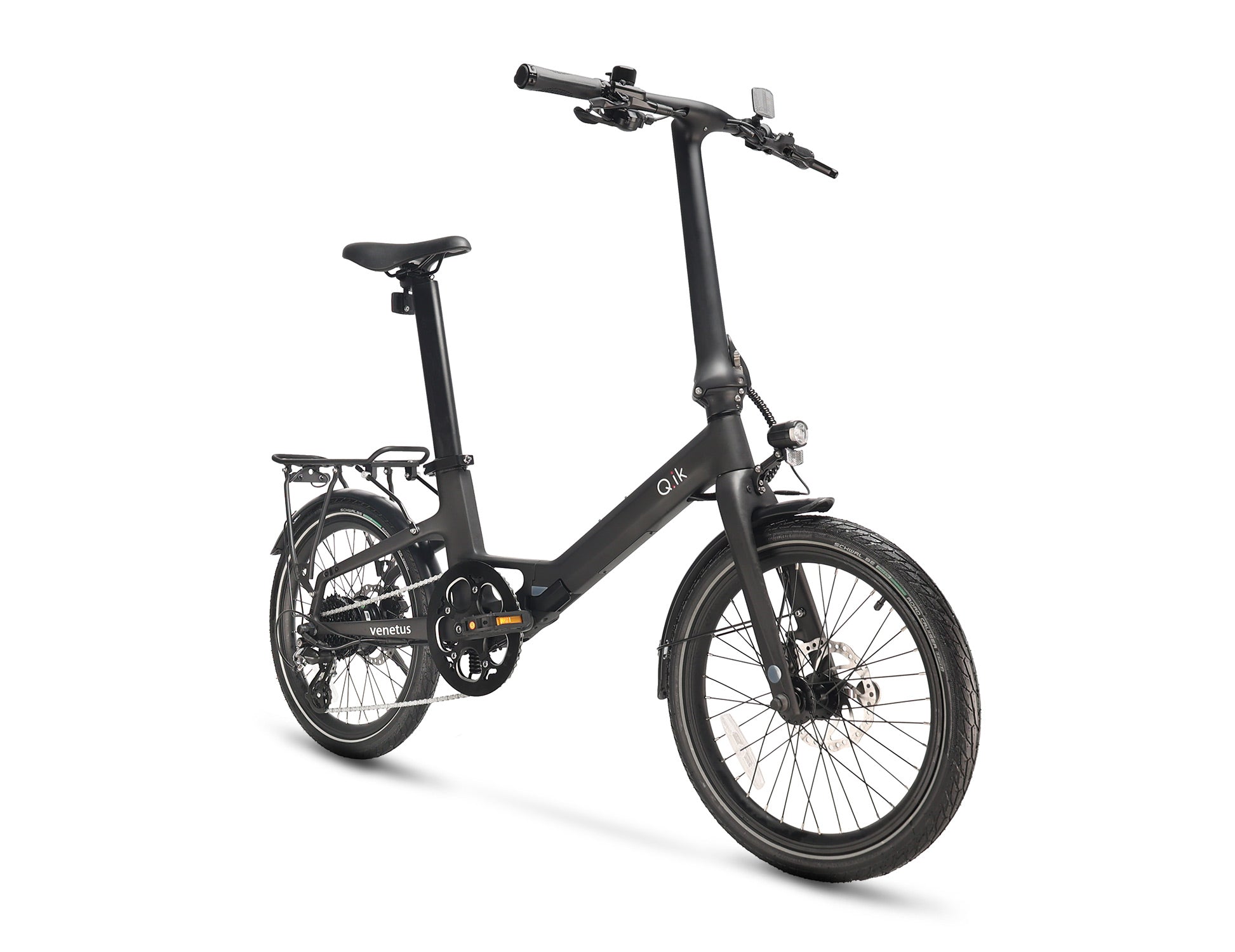

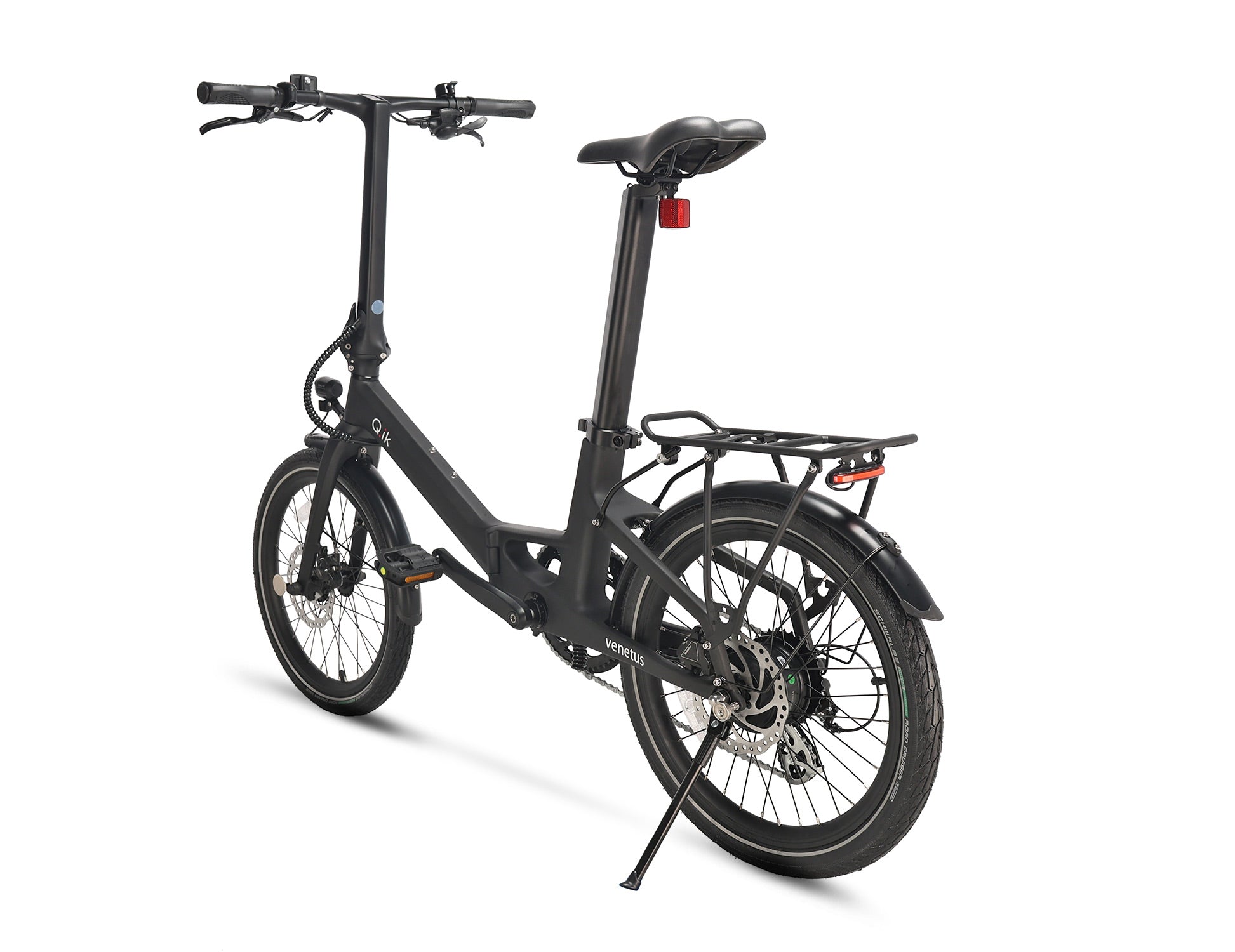

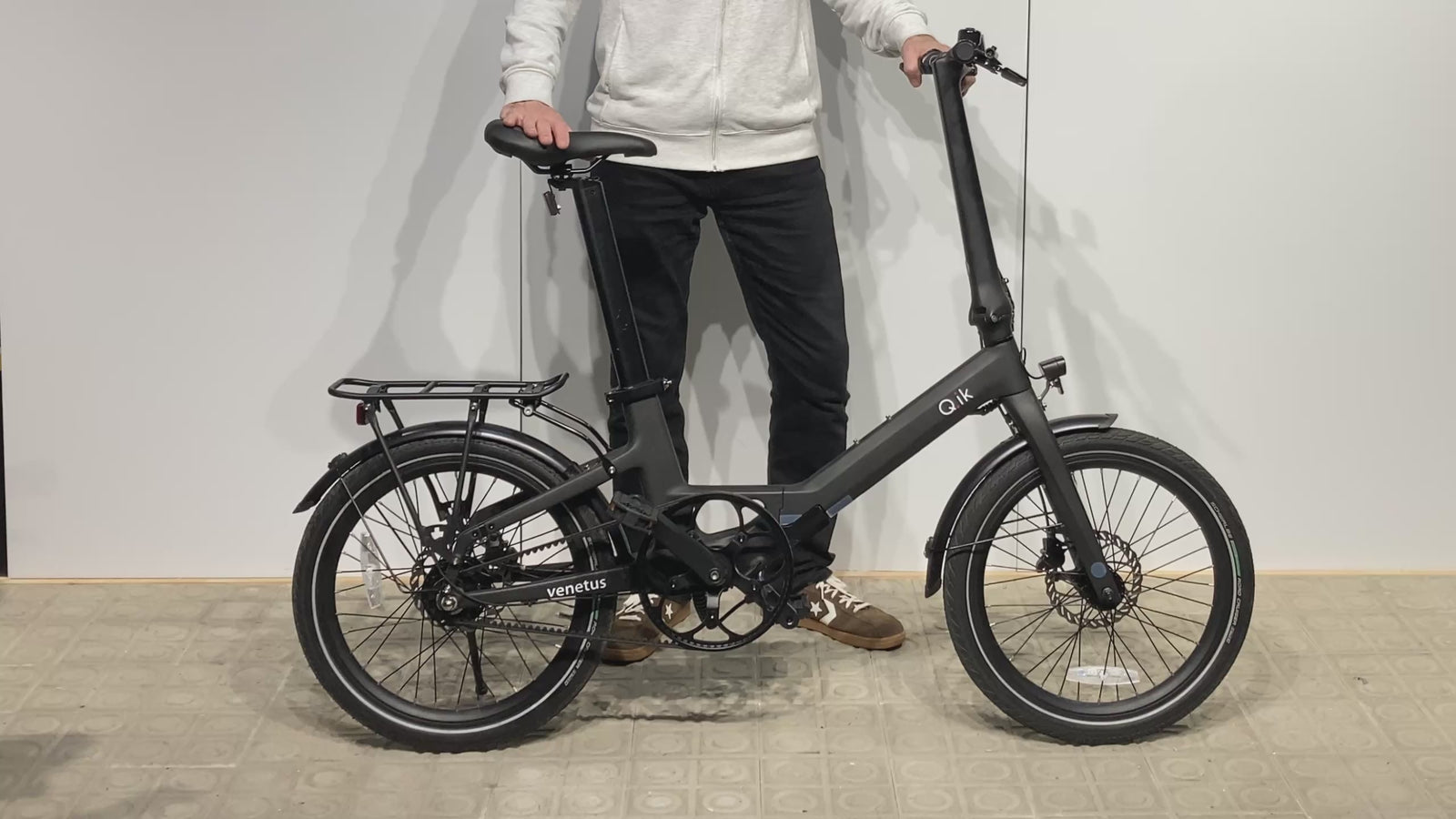

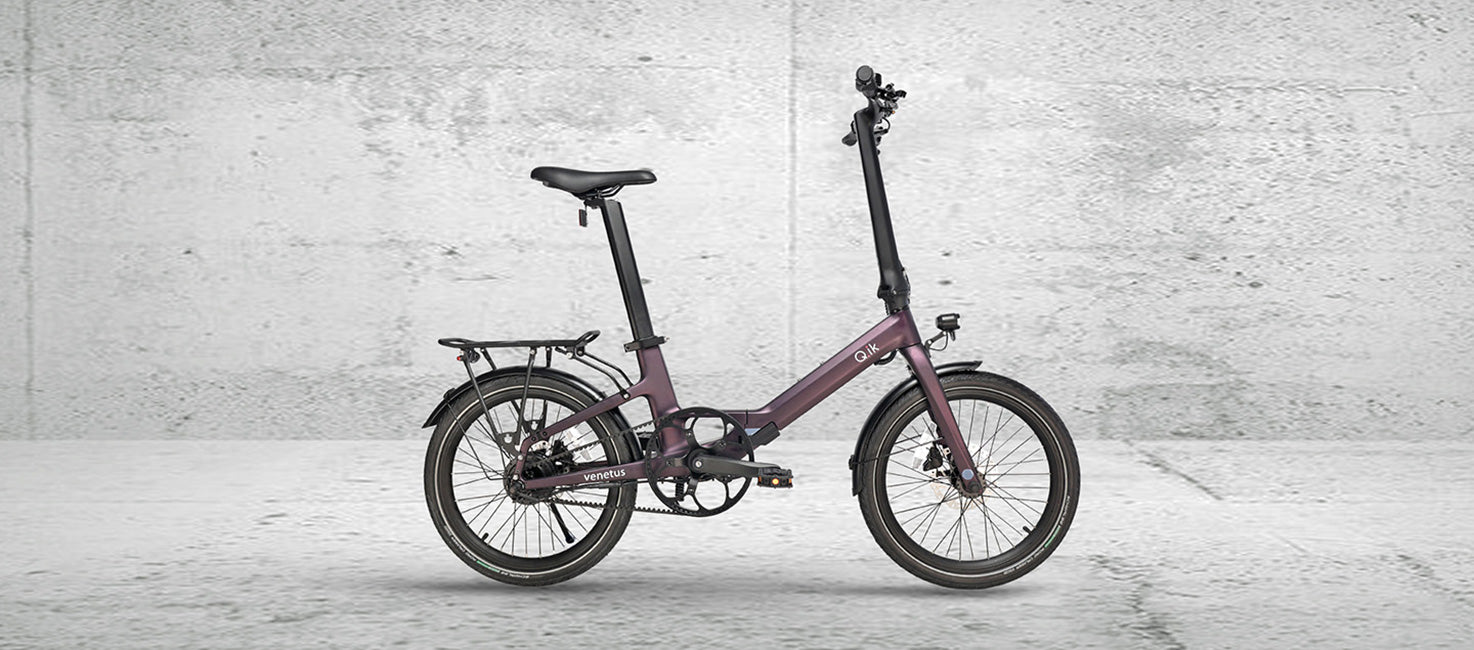

FOLDED / UNFOLDED Q.ik VENETUS

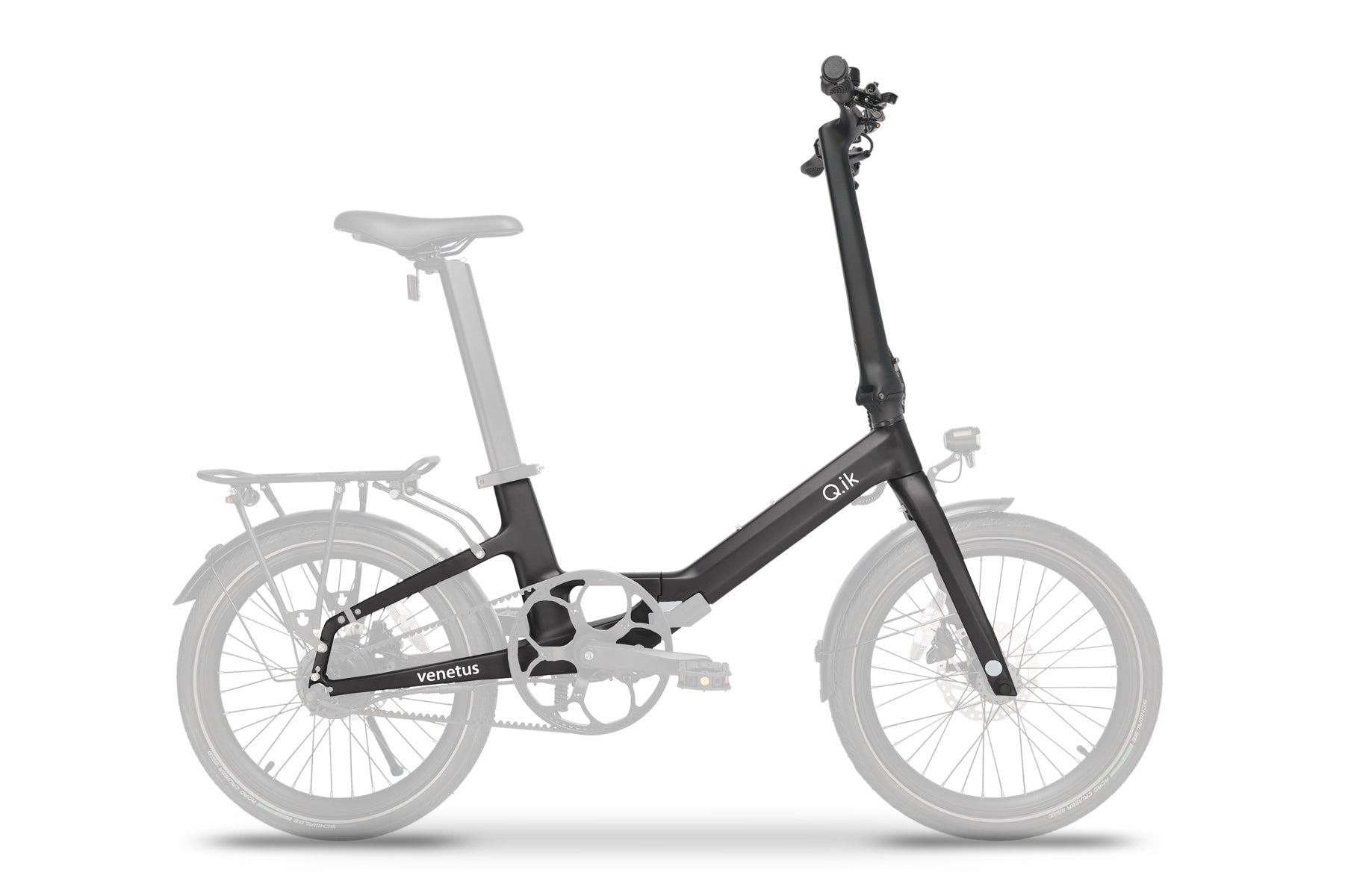

CARBON FIBER
The structural parts of the Venetus model, main frame, front and rear forks and the one-piece stem an handlebar are made of carbon fiber, which offers a very good mechanic resistance and much higher lightness than aluminium bike structures.

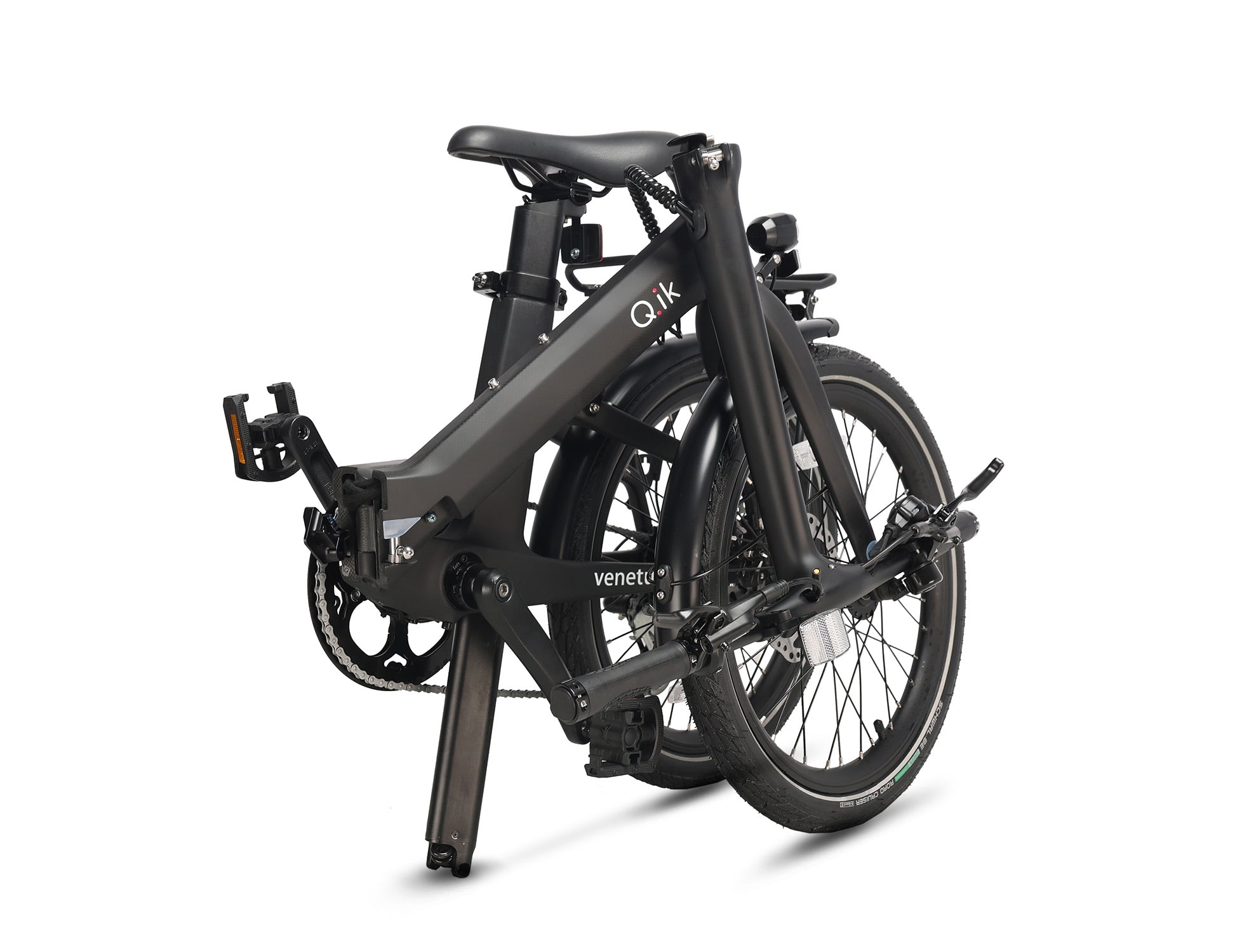

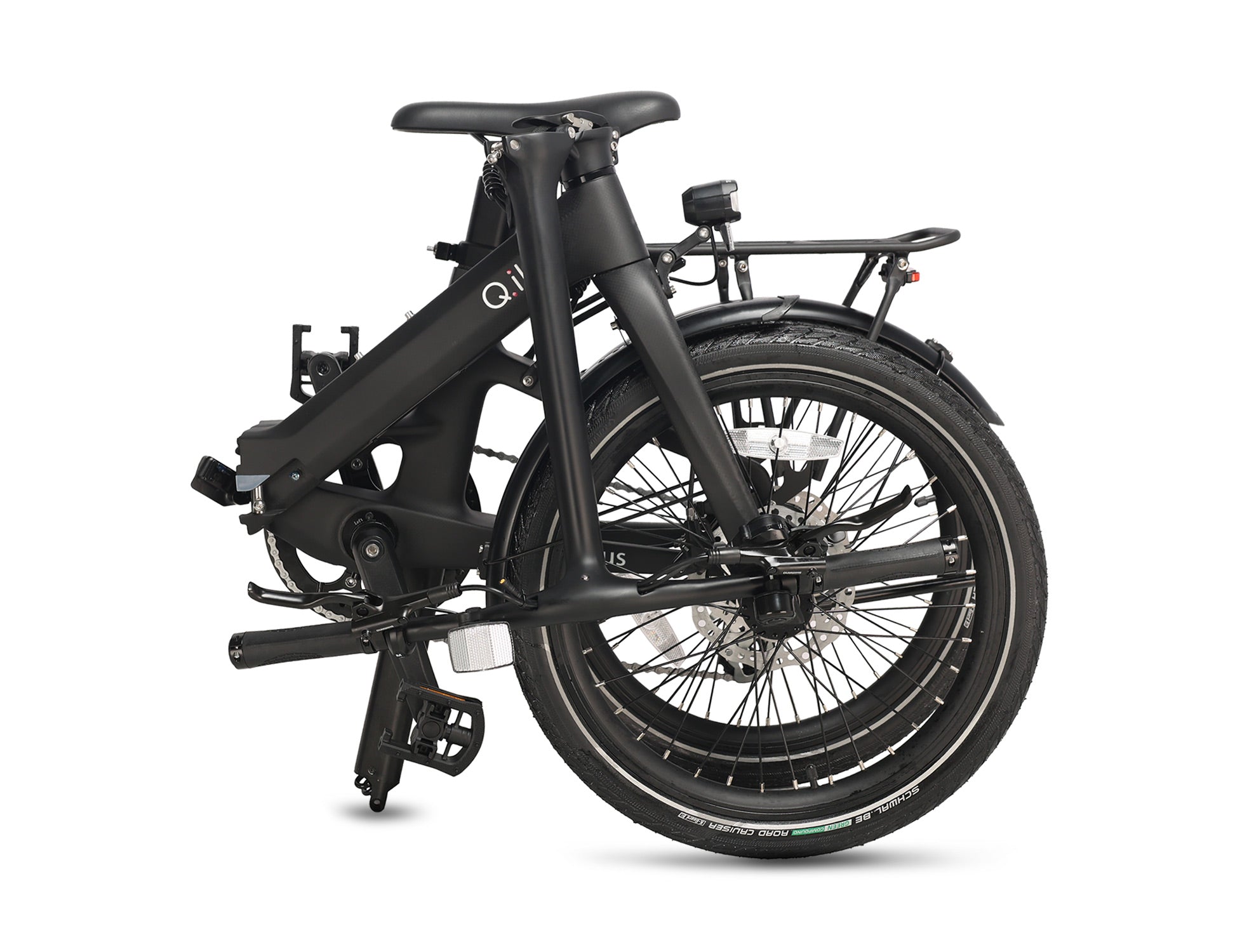

FOLDING SYSTEM
The Barcino model's folding system is intuitive, easy and fast.
The folding system involves two steps. The first step involves rotating the front part of the frame 180° to position the front wheel parallel to the rear wheel. The second step involves folding the handlebar post and handlebars to sit alongside the wheels. To stabilise the bike when it's folded, it is necessary to lower the seat post until it touches the ground and becomes the third point of support.
A two-piece magnets device located on the axles of the front and rear wheels fix the folded position of the bike. It prevents the parts from moving while being manipulated or rolling on the pavements.
LG BATTERY
The Venetus model is equipped with a 36V LG lithium battery with a 10Ah charge capacity, giving it a riding range of up to 60 km. The battery fits neatly into the seat post, where the charging port and main power switch are also located. It can be easily removed, transported and charged anywhere without needing bike to be nearby. Additionally the triangle section shape makes the seat post and also the seat being always streight positioned.
The charging system features an innovative BMS, which prevents the battery from overcharging and overheating and regulates the release of energy for greater efficiency and longer use.

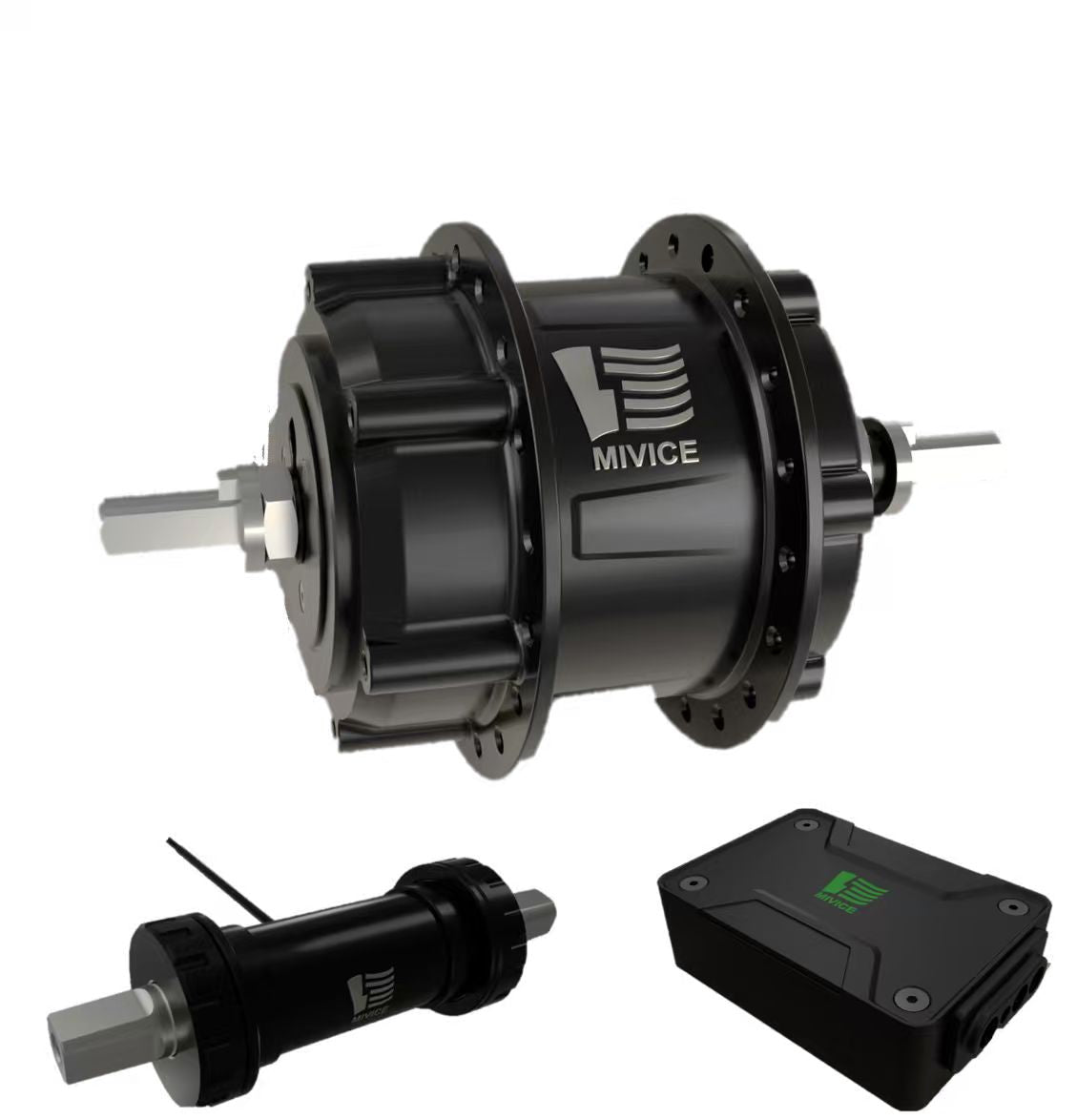

36V 250W MOTOR
The Venetus features a Mivice brand 36V 250W motor located in the rear wheel, which is has a factory-set power limitation to stop the bike from exceeding 25 km/h. By law, when the bike reaches this speed, the motor must stop providing assistance. The motor is powerful enough to meet the demands of overcoming steep slopes.
A pedalling pressure Torque type sensor controls the motor assistance depending on which of the five levels has been chosen.
It has a clutch system that allows the bike to roll without any resistance should the rider want to cycle without any help from the motor.
SHIMANO HYDRAULIC 16mm DISK BRAKES
The Barcino is equipped with Shimano hydraulic 160 mm disc brakes in both the front and rear wheels. They offer great braking power and guarantee to stop the bike within a few metres in case of emergency in all riding conditions. In addition, squeezing the brakes automatically disables the motor, facilitating a more immediate brake response.
8-SPEED TRANSMISSION
The Venetus' 8-speed transmission adjusts the pedalling effort without forcing the motor. The shift lever on the handlebars delivers accurate gear selection according to the gradient of the road. The derailleur is part of the Shimano 8-speed Altus series.

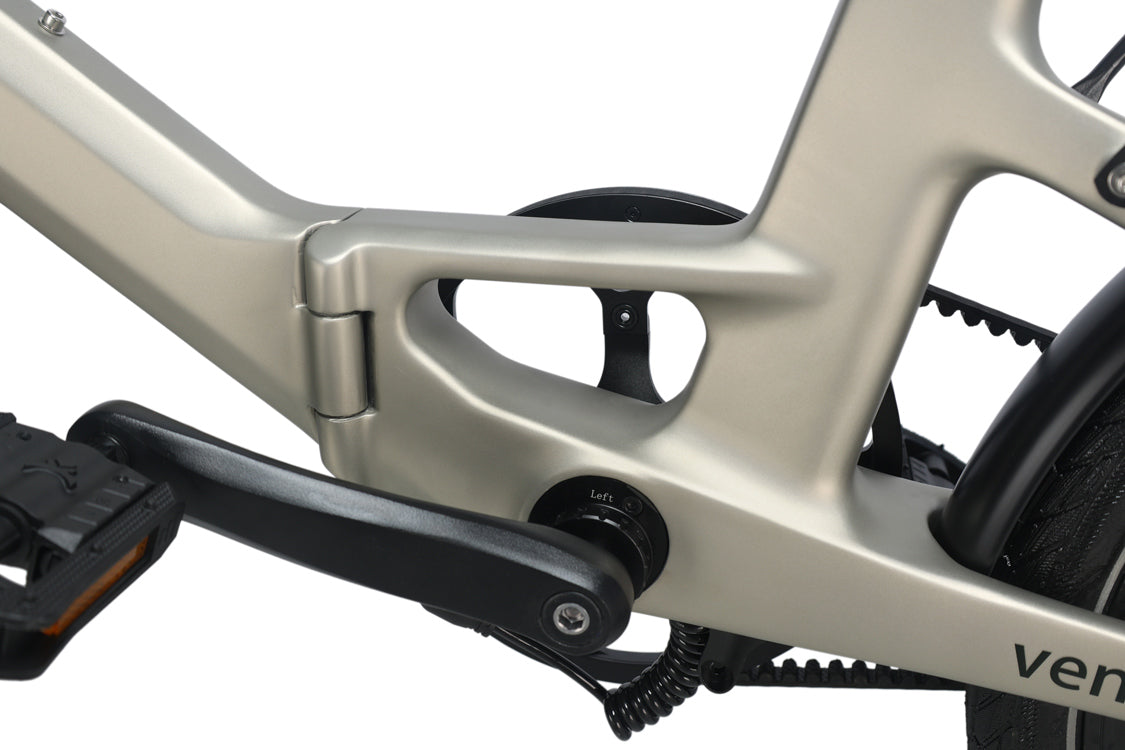

HIGH-QUALITY FINISHES
The frame showcases premium craftsmanship with smooth paintwork and refined surface finishes that enhance both durability and visual appeal. Carefully integrated frame joints and precise construction create a clean, seamless look while ensuring structural strength. Every detail reflects a high level of manufacturing quality, giving the bicycle a sophisticated, modern appearance.

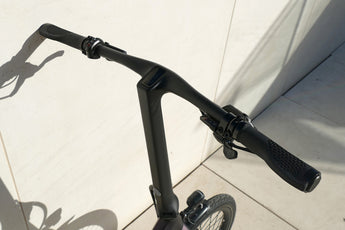

CLEAN AND REFINED DESIGN
The bicycle features a carefully crafted design with a clean and modern aesthetic. Cables are fully integrated and routed internally through the steering column, handlebar, and frame, creating a tidy and streamlined appearance while protecting the components from external elements. This thoughtful integration enhances both the visual elegance of the bike and the overall riding experience.
FULLY EQUIPPED
Q.ik Barcino standard version is a completely equipped ebike. Front and rear fenders, rear rack, seat post battery key lock system, front and rear lights managed from display, adjustable rear suspension shock absorver, torque sensor, LG 10Ah battery, Michelin carbon belt drive system, Shimano hydraulic disk brakes...

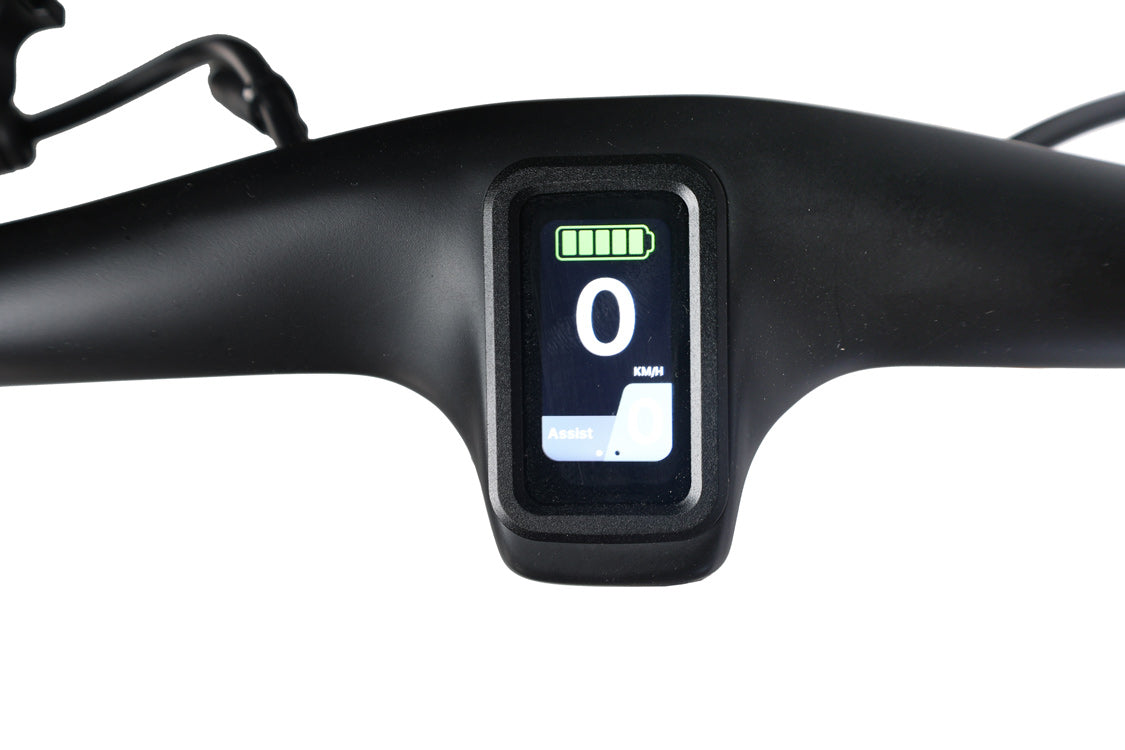

HANDLEBAR IN-BUILT COLOR DISPLAY
Minimalist color display seamlessly integrated into the handlebar, offering a clean and modern look while protecting the screen from external elements. The clear, high-contrast interface allows the rider to easily read key information such as speed, battery level, and assist mode at a glance, ensuring intuitive and distraction-free riding.

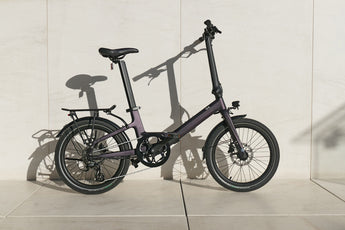

Q.ik VENETUS. LIGHTNESS, COMPACITY, COMFORT AND DESIGN. ALL IN ONE EBIKE
The Q.ik Venetus is a new generation folding e-bike designed for modern urban mobility.
Its lightweight frame and compact geometry make it easy to ride, store and carry in everyday city life.
Comfort, refined design and high-quality integration come together to deliver a smooth and enjoyable riding experience.
A smart, elegant solution for those who want practicality and performance in one single e-bike.
